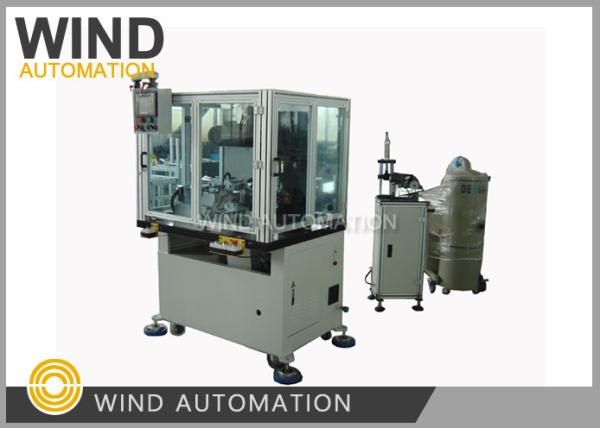

DC Motor Armature Double Cutter Commutator Surface Turning Lathe
Machine WIND-3A-PL
Application:
PMDC motor armature commutator, mixer, vacuum clearner,power tool,
automobile armature
Turning and milling the surface of commutator to let it polish and
shining, commutator turning and burr
remover can help the commutator work well with carbon brush.
How many axis in turning machine?
|
Three axis turning with three servo system |
The smallest armature handled |
Lamination OD 22.7mm(0.89inch), shaft diameter 3.0mm
Commutator OD 7.0mm
|
Lathe cutter piece |
One piece or two pieces options (in different turning direction)
|
Advantages:
1.Precise with three axis servo device control
2. Two cutter type can set different direction turning at same time
for
high requirement commutator surface turning
3. Acquire better commutator roundness and shining suface which
can works well with carbon brush to reduce spark and noise
Specification:
Commutator roundness: ≤0.005mm
(depends on user’s commutator material, armature shaft quality and
bearing position quality)
Roughness: ≤Ra 0.4(depends on customer’s armature quality)
Armature OD: Ф20~Ф82mm
Shaft length: 32~250mm
Shaft OD: Ф3~Ф16mm
Commutator OD: Ф8~Ф40mm
Max. cutting volume: first cut—rough cutting Max 0.15mm(in diameter direction of commutator)
Speed regulation range: 0~60Hz
Z direction cutter feeding speed: settable on touch screen,
stepless adjustable
Z direction cutter returning speed: set on program
X direction cutter feeding speed: settable on touch screen,
stepless adjustable
X direction cutter returning speed: set on program
Z direction cutting length: settable on touch screen,
Max. could set 4times different cutting length(Max 30mm)
Z direction travelling: Max 50mm
Production efficiency: whole cycle≤12sec/pc(twice cutting)
Air pressure: 4~6kg/cm2
Fixture: diamond V shape journal
Total power: 2.2KW
Machine power: 50/60Hz AC230V±10%(single phase)
Burring removing machine power: 50/60Hz AC230V±10%(single phase)
Vacuum cleaner power: 50/60Hz AC380V±10%(three phase)
Weight: about 1,100Kg
Machine dimension: 1,100mm x 1100 mm x 1,830mm3
Surface turning machine:
Turning of the commutator brush track area is accomplished through
the use of a diamond-tipped tool
mounted onto a precision machine slide driven by a Japanese famous
brand Mitubishi A.C. servo motor ,
Turning and milling the surface of commutator to let it polish and
shining.
