300RPM To 500PRM Fast Stator Needle Winding Machine For In-slot
BLDC Motor
Application:
Needle winding BLDC stators of 4 poles
Automatic stator needle winding machine application
| Four poles shaded motor stator winding |
Nozzle 4pcs
| 4 poles wind at same time at 400rmp, There will be 4 staring wires and 4 terminal wires, For turns no 750, wire diameter SWG35, 0.2mm, shaded pole stator, the cycle time is 2minutes
|
4 ploles stator needle winding |
Dedicated machine for 4 poles shaded motor
stator winding
|
Advantages:
1. Wind 4 slots per time, fast
2. Automatic winding, automatic cutting four poles per time
Feature:
4 Sets automatic clamp and cut wire device, wind shaded pole motor
4slots at same time,
and cut wires automatically
Parameter:
Wire diameter:0.08~1.00mm
Stator ID:15~65mm
Core length:7-90mm
Turns No.0-99999
Operation option: stepping,Auto
Stator poles: 4 poles
Air pressure:5~7kg/square centi-meter
Power:2KW, AC220V 50/60Hz
Dimension: 1550*900*1450mm
Weight: about 450kgs
Winder Major Parts:
Big power Stepper motor
Mitsubishi PLC
Embedded human - machine interface
AIRTAC cylinder
Suggestion:
Accordingly to stator winding way, different types of needle
winding machine can have one , two , three,
four needles
For 4 poles stator, we usually suggest customer with 4needles
winding machine WIND-1A-TSM,
it can get the stator fast even there will be 4pcs begining wire
and 4pcs ending wire needed to be
connected,
The needle is driven by cam device rotation which drive the winding
spindle,
The machine WIND-1A-TSM major electrical parts such as Mitsubishi
PLC, Embedded human - machine
interface, Airtac cylinder and so on have CE mark,
and we exported to Europe company such as France, Romania and so
on,
May I know the reason that you'd prefer 1 needle or 2 needes, is it
because of the bridge wire showed on
photo?
Basic machine type WIND-1-TSM with 1 needle is for production of
prototypes of stators with small
quantity,
It can wind the slot one by one, and you may need to put the bridge
wire by hand if you use the type
WIND-1-TSM as your stator insulation cap interfre the machine place
bridge wire automatically,
The poles of shaded pole induction motor consist of 4 slots, which
are cut across the laminations.
The smaller part of the slotted pole is short-circuited with the
help of a coil.
The coils are made up of
copper wire and it is highly inductive in nature. This coil is known as
shading coil. The part of the pole
which has the coil is called the shaded part and the other part of
the pole is called unshaded part.
Motor winding machine manufacturer sample needed:
1. Stator stack samples each 5pcs
2. Copper wire gauge each 1roll
3. Stator lamination drawing and winding drawing

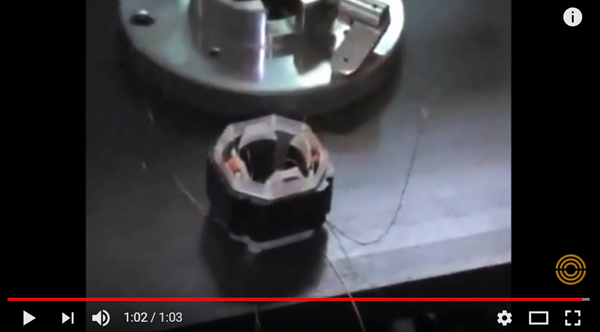

Please click below picture to view video
