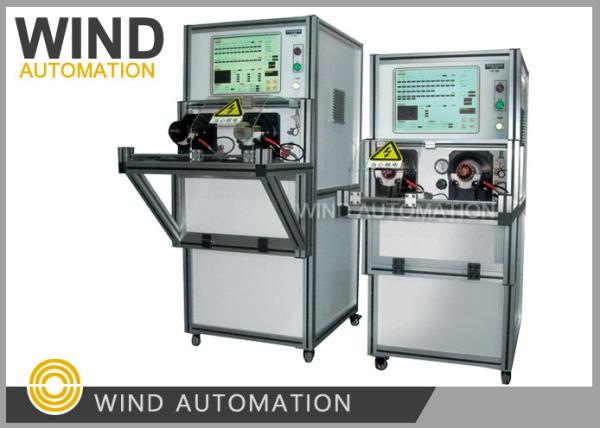

Comprehensive Test Device For No-Load Characteristics Of Motor
Armature WIND-ATS-300
(1) Competitive Advantages
a. Quick and accurate identification of rotor (armature) defects in
the production process of welding,
winding, finishing, etc., and the location of the fault point, to
facilitate the operator to repair the bad
product.
b. For the small resistance of the welding resistance, the system
adopts a direct measurement method
and truly reflects the welding condition of the commutator.
c. The voltage of the high voltage test is automatically adjusted
and generated, stable and convenient.
d. Up to 3 sets of power frequency withstand voltage test meet the
needs of various products.
e. All standard parameters of the equipment are automatically read
and set up with a single button.
(2) Technical Data
Test description
|
Test Result
|
Inter-chip resistance 0.001Ω-1000Ω
|
≤±0.5%
|
Welding resistance 0.001mΩ-10mΩ
|
±10μΩ
|
180 resistance 0.01Ω-1000Ω
|
≤±0.5%
|
Surge 100-2000Vpp
|
±2.5%
|
Isolation resistance DC 500V
|
0.1-500MΩ
|
Hipot AC 100-2000V
|
0-20mA
|
(3) Equipment environment
Power:AC220V+/-10%, 50Hz
Air pressure: 0.4~0.6MPa
Temperature:0~45℃
(4) Size of Equipment
WIND-ATS-100 930mm*1240mm*560mm
WIND-ATS-200 1040mm*1440mm*600mm
WIND-ATS-300 1050mm*1500mm*600mm
HS Code:9030390000
(5) Auxiliary functions (optional)
- Reading of a barcode or two-dimensional code
- Laser marking device, coding device or label printing
3. Defective product stack
Used to store non-conforming products that have been tested. The
operator must place the tested nonconforming product in the
designated position and the device can start the next test. Avoid
misplaced products.
4. Automated assembly line
It is used for IO control and communication control of automatic
assembly line to facilitate independent integration to complete the
need of overall automated production.
5. Database function
After networking, test data can be automatically uploaded to the
server and saved in EXCEL format, integrated two-dimensional code
scanning
