Solar Steering Motor Armature Flyer Winder Rotor Lap Winding
Machine WIND-2A-TD
(1) Application
This is a double-fly fork winding machine specially used for
producing hook type commutator rotors.
This winder is sutiable for high-speed winding of medium and large
wire diameter rotors.
This machine is windely applied to the winding of DC and series
motor rotors.
(2) Competitive Advantages
1. Suitable for winding kinds of special winding design armature
such as the solar steering motor showed in photo
2. For armature / rotor with high slot filling rate
3. For armature double flyer winding machine tensioner, China local
motor manufacturers usually use hysteresis tensioner or electrical
tensioner
according to wire diameter, winder with hysteresis tension which
showed in below armature winding machine photo,
This tensioner control the tensioner in four stages, stand-by
tension, indexing tension, hooking tension, winding tension,
Which make the winding result compact neat and nice,
(3) Parameter Data
Applicable winding diameter: | Ф0.15-Ф1.26mm |
Rotor diameter: | Ф20-Ф90mm |
Rotor stack thickness: | 10-130mm |
Commutator diameter: | Ф8-Ф50mm |
Action process: | single-action/automatic |
Number of rotor grooves: | odd/even grooves |
Winding turns: | 0-99999 |
Fly-fork speed: | 0-2000rpm |
Parameter storage: | 0-99 |
Power source: | AC380V 50/60Hz |
Air source pressure: | 5-7kg/cm² |
Total power: | 3.5KW |
Total weight: | about 830kg |
Volume: | 1530×1050×1650mm³ |

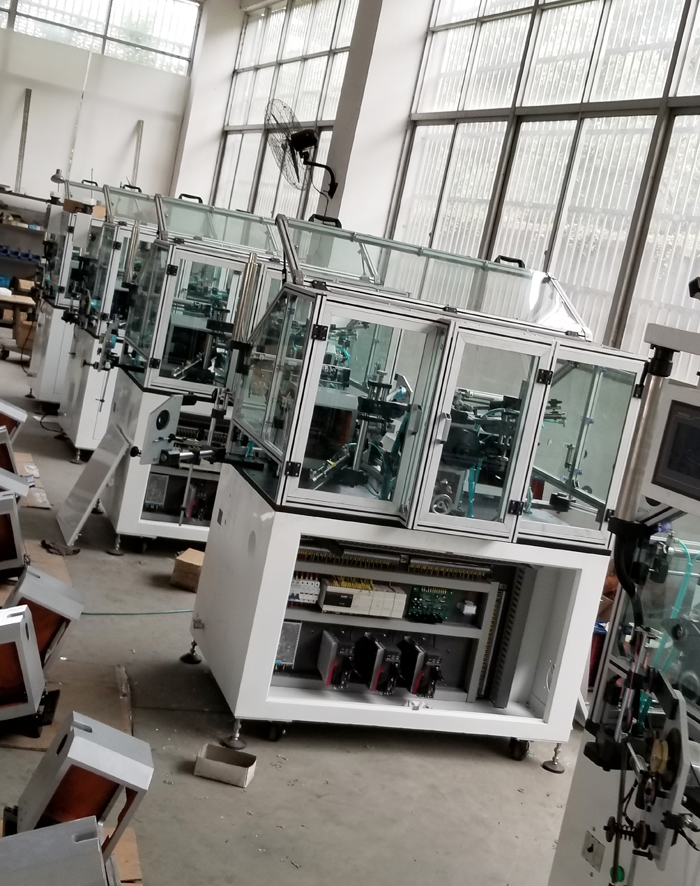

Sunshine Facing Motor Armature Winding Machine Main Parts:
Mitsubishi Program Controller
Delta Three-set Servo Control System
Embedded Touch Screen Human-computer Interface
Airtac Pneumatic System and Air Source Treatment
South Korea and Japan Main Electrical Elements
Magnetic Hysteresis Tension Control Unit
Taiwan HIWIN Linear Guide Rail

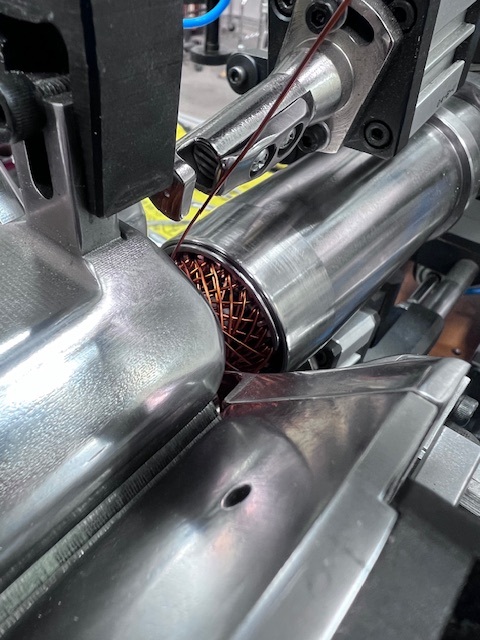

Any recommendation on how I can move the wire closer to grip for
snap break? I have already moved finger grip over as mush as
possible.
Is there a setting I can adjust to help me move the wire into the
correct position .
