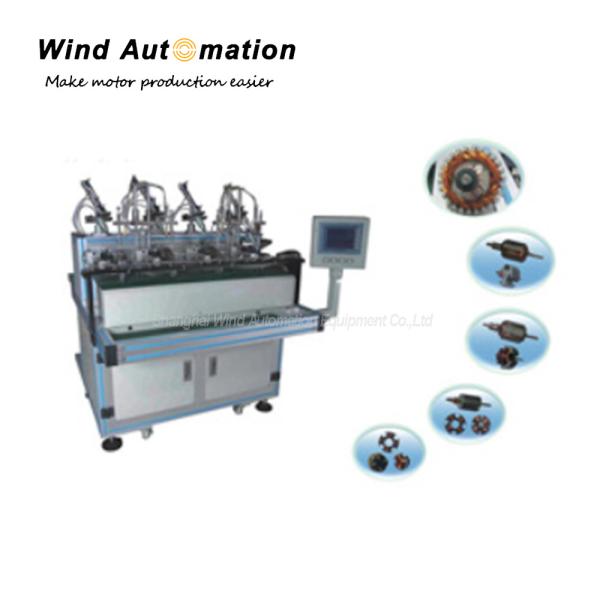

Fine Wire Automatic Armature DC Motor Coil Winding Machine AWG 40 To AWG23 Thin Copper Wire 0.08mm To 0.55mm

Application:

This armature winder WIND-STR-2 is a fast flyer coil winding machine for motor mass production

manufacturing of hook type tang type commutator armature,Mixer,Vacuum cleaners, Hammers,Power

tool...

and suitable for small wire gauge diameter winding.

Competitive Advantages:

Parameter Data:

Wire diameter: 0.08~0.30mm (Mechanical type tensioner) AWG28 to AWG40

0.16~0.55mm (Hysteresis tension device) AWG23 to AWG34

Winding slots: Odd/even number

Commutator diameter: 8~40mm

Armature diameter: 20~60mm

Armature stack length: 10~60mm

Winding motor speed: 0~3000 rpm

Control system: Mitsubishi PLC control

Air supply pressure: 0.5~0.7MPa

Voltage:AC220V 50/60Hz

Weight: 500Kg

Dimension: 1800(l)X800(w)X1500(h)mm

HS code: 8479811000

Information needed for Commutator Armature Winding Machine inquiry:

1. Armature/Rotor lamination drawing

2. Armature/Rotor assemble drawing

3. Armature/Rotor stack drawing

4. Armature/Rotor winding diagram drawing: with rotor wire diameter and turn number

5. Armature/Commutator drawing

6. Required productivity

7. Other technical requirement

If possible, it will be better if customer can send us samples.
