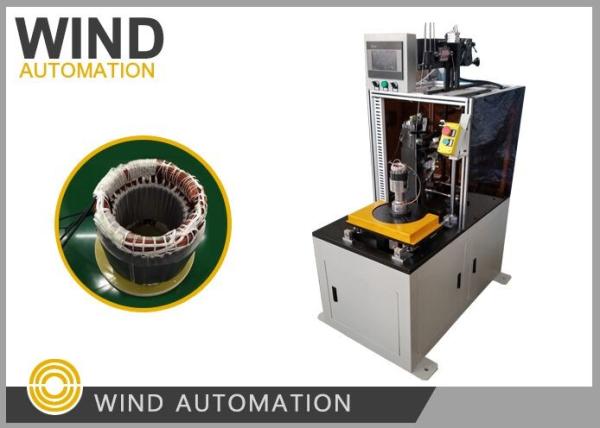

Stator Coil Stitched Cord Knit Lacing Machine For AC Induction Motor WIND-100-CL

This Stator coil knit lacing machine is for lace the stator end coils one side by side,

is one process of induction motor ac motor manufacturing,

Stator coils lacing is the process of tightly securing the field coil ends of an electric motor stator with a stitched cord,

also called motor stator coil braiding.

Stator Coil Knot machine application:

Lacing is typically used on long-life-expectancy or high-efficiency motors such as some induction motor where the cost of failure is high. Generally, low-cost “throwaway” motors are not laced.

Stator Coil Knot machine parameter:

Stator OD: < 150mm

Stator Stack heigth: 15~120mm

Stator ID: > 33mm

Lacing Mode: Each slot, skip slot

Lacing Speed: 0.4~0.8s/needle

Air pressure: 0.4~0.7MPa

Power Supply: 3phase 380V

Power: 3.0Kw

Dimension: 1600mm*700mm*1700mm

Weigth: 500KGS

Application:

For generator,Deep water pump,three phase motor slot insulation

Advantages:

1. Use the stator Inner side Diameter to do positioning, easy to change tooling

2. Three servo motors ensure the easy adjustment of machine and smooth lacing,

One Delta servo motor control the stator indexing

One Delta servo motor control the nozzle movement (the nozzle guide the stitched cord)

One Delta servo motor control the mechanical movement of the whole machine

3. One of the top sold machine during induction motor manufacturing machines,

Upgrade every year per local user motor manufacturer's feedback
